Compact Size And Light Weight G1/8" 2 Gas Passage Pneumatic Rotary Union
Description of 3002006 Pneumatic Rotary Union
SENRING two passages rotary unions 3002006 series,support G1/8 port for 6~8mm pipes,can transfer various mediums including air,steam,vacuum,negative pressure,positive pressure...etc. when 360° rotating,
Advantages :
1. compact size;
2. light weight;
3. low torque
Features of 3002006 Pneumatic Rotary Union
1. Support transmit mixed power and signals,such as USB,HDMI, 1000M ethernet, VGA, DVI, coaxial RF (high frequency),servo motor signal,industrial bus slip rings...etc;
2. 360° transmit compressed air,steam,vacuum,negative pressure,positive pressure...etc;
3. Max. Pressure(s):1Mpa (vacuum: -1.5kPa, higher Pressure can be customized)；
4. Support 2 G1/8" port for 6~8mm pipes;
Technical Specification of 3002006 Pneumatic Rotary Union
| Passages(Gas) | 2 passages |
| Pipe Size | 6~8mm pipe, G1/8" Port |
| Mechanical Data |
| spec. | data |
| Working life | 20millions for ref(depends on working conditions) |
| Max. Operating Speed | 250RPM continously, 1000RPM intermittently |
| Working temp. | -30°C~80°C |
| Work humidity | 0~85% RH |
| Contact Materia | Precious Metal |
| Housing Material | aluminum alloy |
| IP Grade | IP51 |
Max. Operating
Pressure | Positive Pressure 1Mpa, Vacuum -90kPa |
| torque | <0.2N.m |
| Electrical Data |
| spec. | data |
| Power | Signal |
| Voltage range | 0~440VAC/VDC | 0~440VAC/VDC |
| Insolution resistance | <500MΩ/300VDC | <500MΩ/300VDC |
| Lead wire spec. | AWG17# Silver-plated teflon wire | AWG22# Silver-plated teflon wire |
| Lead wire length | standard 250mm(can be customized) |
| Insolution resistance | 500VAC@50Hz,6s |
| Electrical noise | <0.01Ω |
Part no. description

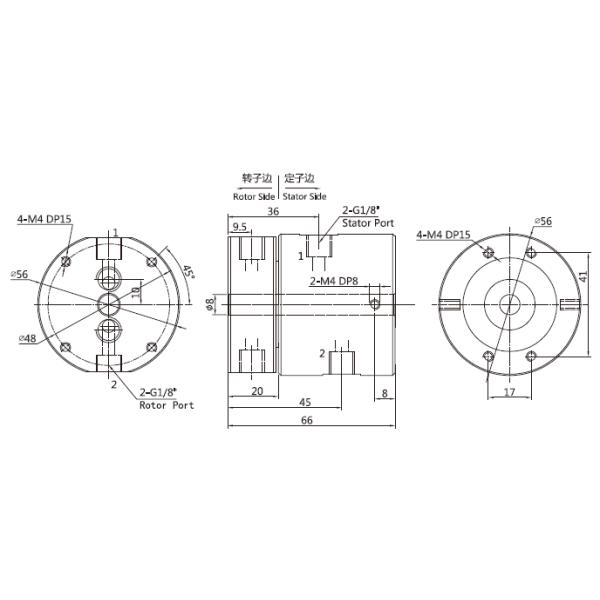

Drawing
Standard model list
| 3002006 | 2 passages | G1/8" | 6~8mm |
Drawing
Standard model list
| 3002006-06S | 2 passages | G1/8" | 6~8mm | 6 | 14 |
| 3002006-12S | 2 passages | G1/8" | 6~8mm | 12 | 21 |
| 3002006-24S | 2 passages | G1/8" | 6~8mm | 24 | 35 |
| 3002006-36S | 2 passages | G1/8" | 6~8mm | 36 | 52.3 |
| 3002006-56S | 2 passages | G1/8" | 6~8mm | 56 | 82 |

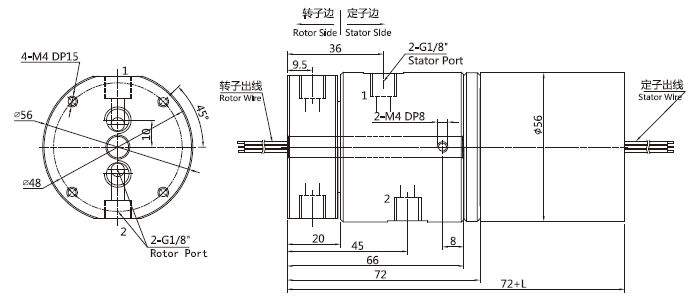

Drawing
Standard model list
| 3002006-06S | 2 Passages | G1/8" | 6~8mm | 0 | 6 | 38 |
| 3002006-0610 | 2 Passages | G1/8" | 6~8mm | 6 | 0 | 38 |
| 3002006-12S | 2 Passages | G1/8" | 6~8mm | 0 | 12 | 55 |
| 3002006-0610-06S | 2 Passages | G1/8" | 6~8mm | 6 | 6 | 55 |
| 3002006-1210 | 2 Passages | G1/8" | 6~8mm | 12 | 0 | 55 |
| 3002006-0610-12S | 2 Passages | G1/8" | 6~8mm | 6 | 12 | 71.5 |
| 3002006-1210-06S | 2 Passages | G1/8" | 6~8mm | 12 | 6 | 71.5 |
| 3002006-18S | 2 Passages | G1/8" | 6~8mm | 0 | 18 | 71.5 |
| 3002006-1810 | 2 Passages | G1/8" | 6~8mm | 18 | 0 | 71.5 |
| 3002006-0610-18S | 2 Passages | G1/8" | 6~8mm | 6 | 18 | 88.5 |
| 3002006-24S | 2 Passages | G1/8" | 6~8mm | 0 | 24 | 88.5 |
| 3002006-30S | 2 Passages | G1/8" | 6~8mm | 0 | 30 | 106 |
| 3002006-36S | 2 Passages | G1/8" | 6~8mm | 0 | 36 | 125 |
